9. Database Technology (Relational/Graph)

Technical Story: Evaluate database technologies #46

9.1. Context and Problem Statement

We want to use a state of the art database that can store services/applications according to our data Model and is easy to integrate with Spring Boot.

9.2. Decision Drivers

  • Integration with Spring Boot
  • Different versions of a service will be stored as individual services
  • Applications will be seen as concrete instances of services

9.2.1. Data Model Relational

graph G { { subgraph cluster_0 { label="not deployable" style=dotted service [label=Service, shape=rectangle] serviceID [label=<<U>ID</U>>] serviceVersion [label=Version] serviceName [label=Name] serviceExtra [label="..."] predecessor [shape=diamond] depends [label="depends on" shape=diamond] has [shape=diamond] versionRange [label="Version Range"] serviceDescription [label="Service Description", shape=rectangle] serviceDescriptionID [label=<<U>ID</U>>] serviceDescriptionProtocol [label=Protocol] serviceDescriptionType [label="Type (REST, gRPC)"] } subgraph cluster_1 { label="deployable" style=dotted isA [shape=diamond] includes [shape=diamond] application [label=Application, shape=rectangle] applicationID [label=<<U>ID</U>>] deployInfo [label="Deploy Information", peripheries=2] vizData [label="Visualization Data", peripheries=2] } } service -- {serviceID, serviceVersion, serviceName, serviceExtra} service -- has [label=1] has -- serviceDescription [label="1..n"] service -- depends [label=1] depends -- versionRange depends -- service [label="1..n"] service -- predecessor [label=1] predecessor -- service [label=1] serviceDescription -- {serviceDescriptionID, serviceDescriptionProtocol, serviceDescriptionType} application -- {applicationID, deployInfo, vizData} application -- includes [label=1] includes -- service [label="1..n"] application -- isA [label=1] isA -- service [label=1] }

Important

The Service Description entity in the model describes a Service Interface.

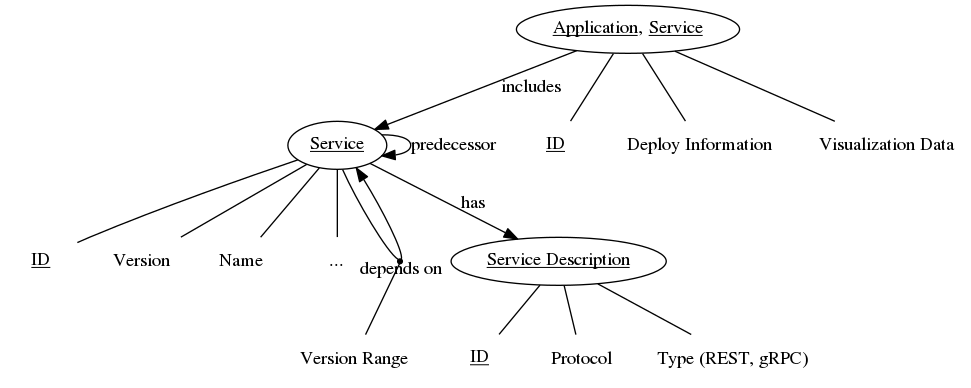

9.2.2. Data Model Graph

digraph G { { service [label=<<U>Service</U>>] serviceID [label=<<U>ID</U>>, shape=plaintext] serviceVersion [label=Version, shape=plaintext] serviceName [label=Name, shape=plaintext] serviceExtra [label="...", shape=plaintext] x [shape=point] versionRange [label="Version Range", shape=plaintext] serviceDescription [label=<<U>Service Description</U>>] serviceDescriptionID [label=<<U>ID</U>>, shape=plaintext] serviceDescriptionProtocol [label=Protocol, shape=plaintext] serviceDescriptionType [label="Type (REST, gRPC)", shape=plaintext] application [label=<<U>Application</U>, <U>Service</U>>] applicationID [label=<<U>ID</U>>, shape=plaintext] deployInfo [label="Deploy Information", shape=plaintext] vizData [label="Visualization Data", shape=plaintext] } service -> {serviceID, serviceVersion, serviceName, serviceExtra} [dir=none] service -> x [dir=none] x -> service [taillabel="depends on"] x -> versionRange [dir=none] service -> service [label=predecessor] service -> serviceDescription [label=has] serviceDescription -> {serviceDescriptionID, serviceDescriptionProtocol, serviceDescriptionType} [dir=none] application -> {applicationID, deployInfo, vizData} [dir=none] application -> service [label=includes] }

Important

The Service Description entity in the model describes a Service Interface.

9.3. Considered Options

  • Relational database:
    • MySQL
    • MariaDB
    • PostgreSQL
    • SQlite
  • Graph database:
    • Neo4J

9.4. Decision Outcome

Chosen option: The graph database Neo4J, because it fits our data model best.

9.5. Pros and Cons of the Options

9.5.1. Relational database

  • Good, because team already has sql knowledge
  • Good, because Spring Boot integrations and ORM for java available
  • Good, because sql scheme
  • Bad, because sql scheme needs to be defined
  • Bad, because data migrations to new database format need to update schema and data

9.5.2. Graph database

  • Good, because applications and services naturally form a graph
  • Good, because Spring Boot integrations and OGM for java available
  • Good, because node/edge properties are dynamic
  • Bad, because new query language
  • Bad, because no rigid schema like in sql databases and therefore more necessary checks (e.g. type, exists) in code
